�� Adapt of
Micro-adjusting handle with high sensitivity and safety
�� Aluminum alloy
gravity crankcase
�� Stainless
steel air chamber and plungers
�� Suitable for
application in topical and semi tropical weather
SPECIFICATION

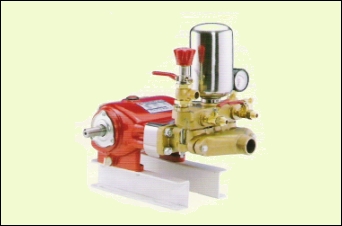

Model
SC-45
Plunger dia.
33.5 mm
Stroke
28 mm
Plunger number
3
Rotation capacity
300-800 r.p.m
Suction capacity
22-59 L/min
Pressure
Max
40 Bar / 560 psi
Working
30 Bar / 420 psi
Power required
3-5 HP
Gasoline engine
7 PS
Pulley (Standard)
10"xB2
LxWxH
50x43x45 (cm)
Weight
28 kgs
Accessories:
1) Suction Hose x 1pc
2) Overflow x 1pc
3) Strainer x 1pc
4) Pulley x 1pc
5) Tool kits x 1set
AUTOMATIC
KNAPSACK
SPRAYERS WITH
PRESSURE GAUGE
FW-4
FW-5
SEMI-AUTOMATIC
