 SEMI-AUTOMATIC
KNAPSACK SPRAYERS
FW-1
FW-2
FW-8 |
|
|
�� Easy start
�� Light weight & high durability
�� Fuel efficient
�� Advanced engine vibration absorbent system |
|
|
|
|
|
|
SPECIFICATION |
|
Model |
HT-25A |
HT-40A |
HT-50A |
|
Connection diameter |
25 mm (1 inch) |
40mm (1.5 inch) |
50 mm (2 inch) |
|
Connection thread |
Out Pipe Thread |
|
Delivery volume |
125 Liter/Min |
185 Liter/Min |
200 Liter/Min |
320 Liter/Min |
|
Lift |
37M |
40M |
42M |
18 M |
|
Suction length |
10M |
8M |
8M |
8M |
|
Engine type |
2 Cycle, Single Cylinder, Forced
Air-cooled, Gasoline Engine |
|
Engine model |
HT-328 / TL-33 |
HT-358 |
TL-43 |
TL-52 |
|
Displacement |
33 C.C. |
36 C.C. |
43 C.C. |
52 C.C. |
|
Horse power |
1.7 HP
6500 r.p.m |
1.9 HP
6500 r.p.m |
2.1 HP
6500 r.p.m |
2.3 HP
6500 r.p.m |
|
Carburetor |
Float Type |
Float Type |
Float Type |
Suction Type |
|
Ignition System |
Electronic CDI |
|
Spark Plug |
Champion CJ8 |
|
Fuel Mixture (Petrol) |
Mixed fuel of gasoline and 2 cycle oil
at 20-25:1 |
|
Fuel Tank Capacity |
1.5 L |
1.5 L |
1.5 L |
1 L |
|
Packing Unit |
1 Set / Ctn |
1 Set / Ctn |
1 Set / Ctn |
1 Set/Ctn |
|
Gross Weight |
8.5 Kgs/Set |
10.6 Kgs/Set |
10.6 Kgs/Set |
11.5 Kgs/Set |
|
Meas. |
1.34 Cuft/Set |
1.78 Cuft/Set |
1.78 Cuft/Set |
1.7 Cuft/Set |
|
|
|
|
|
|
|
|
|
|
AUTOMATIC
KNAPSACK
SPRAYERS WITH
PRESSURE GAUGE
FW-4
FW-5 |
|
|
|
|
|
COMPRESSION/SEMI-
AUTOMATIC KNAPSACK
PLASTIC SPRAYERS
FW-6P
FW-18
FW-20 |
|
|
|
|
|
ELECTRIC POWER
(GASOLINE) ENGINE
PLASTIC KNAPSACK
SPRAYERS
F-708
F-747
F-768 |
|
|
|
|
|
ELECTRIC POWER
(GASOLINE) ENGINE
FERTILIZER BLOWERS
TB-30D/G |
|
|
|
|
|
POWER
FOLD/MINI CULTIVATOR/TILLER |
|
|
|
|
|
HARD-TUBE
BRUSH CUTTERS
TL-26L/33L/43L/52L |
|
|
|
|
|
SOFT-TUBE
BRUSH CUTTERS
TL-33/43 |
|
|
|
|
|
HEDGE TRIMMERS
HT-600 |
|
|
|
|
|
AUGER (DRILLING)
MACHINES
Earth Auger Machine |
|
|
|
|
|

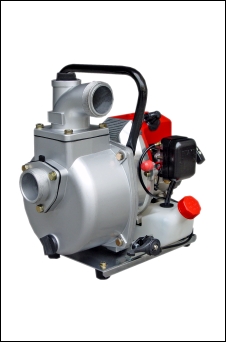

POWER ENGINE
WATER PUMPS
HT-25A/40A/50A |
|
|
|
|
|
POWER PORTABLE
SPRAYERS
F-268
F-26
F-20AS
F-43AS |
|
|
|
|
|
POWER SPRAYER/
PLUNGER PUMPS
DS-200/300
CU-250/350
SBH-280
SC-45
DSES-200/300
DSMF-200/300 |
|
|
|
|
|
MULTI-PURPOSE
(TRIGGER) SPRAYERS
212-H1/213-H1/214-H1 |
|
|
|
|
|
MULTI-PURPOSE
(TRIGGER) SPRAYER
EASY-FILL TYPE
212-H |
|
|
|
|
|
SPRAY GUN/ROD/NOZZLE
F-101~F110
F-201~F209
F-301~F308
F-309~F317 |
|
|
|
|
|
|
|
|
|
|
|
|
|
