 SEMI-AUTOMATIC
KNAPSACK SPRAYERS
FW-1
FW-2
FW-8 |
|
|
�� Auto Safety Valve
protects high pressure hose from brusting
�� Aluminum alloy
gravity crankcase
�� Stainless
steel air chamber and plungers
�� Suitable for
application in topical and semi tropical weather
|
|
|
|
|
|
|
|

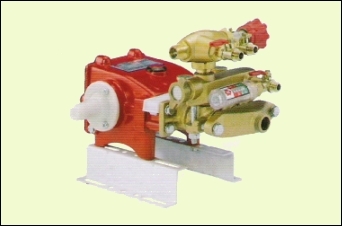

SPECIFICATION |
|
Model |
CU-250 |
CU-350 |
|
Plunger dia. |
22 mm |
30 mm |
|
Stroke |
16 mm |
20 mm |
|
Plunger number |
3 |
3 |
|
Rotation capacity |
300-1000 r.p.m |
300-1000 r.p.m |
|
Suction capacity |
5.5-18.2 L/min |
12.7-42.4 L/min |
|
Pressure |
Max |
40 Bar / 560 psi |
40 Bar / 560 psi |
|
Working |
30 Bar / 420 psi |
30 Bar / 420 psi |
|
Power required |
1-1.5 HP |
2-3 HP |
|
Gasoline engine |
3-4 PS |
5-6 PS |
|
Pulley (Standard) |
7.5"xA2 |
9"xA2 |
|
LxWxH |
36x28x31 (cm) |
39x32x36 (cm) |
|
Weight |
11 kgs |
13kgs |
|
|
|
|
|
Accessories:
1) Suction Hose x 1pc
2) Overflow x 1pc
3) Strainer x 1pc
4) Pulley x 1pc
5) Tool kits x 1set |
|
|
|
|
|
